Electric 9.03

( 9 reviews )

Rate It!

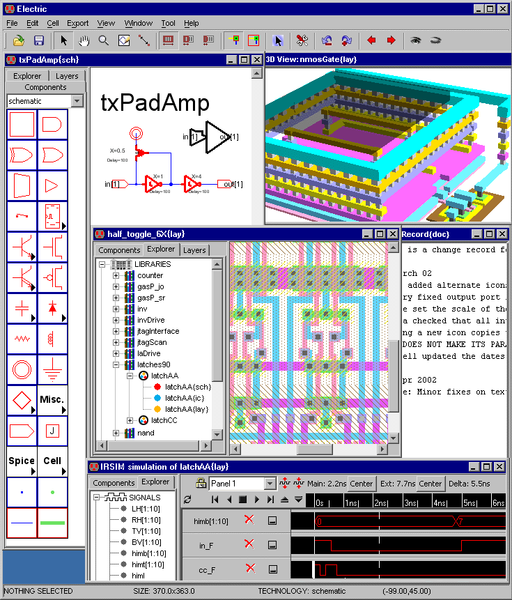

Electric, CAD electrical circuit design system.

Updated by Editors on Tuesday, September 25, 2012.

Computer-aided design system that can handle custom IC layout (ASICs), schematic drawing, hardware description languages, and electro-mechanical hybrid layout. Includes the following CAD operations: design rule checking , simulation interface (8 options), PLA generation, compaction, compensation, routing (4 options), VHDL compilation, silicon compilation, and network consistency checking.

Handles the following types of designs: MOS (6 CMOS variations, 1 nMOS variation), bipolar and BiCMOS, schematics and printed circuits, digital filters, temporal logic, and artwork.
